Neodymium Pot Magnet – 1.417 in X 0.315 in w/M6 Internal Threaded Stem

[RBN-36A]
Click image to enlarge
Specifications
  • Grade: 35
  • D (in): 1.417
  • THK (in): 0.315
  • H (in): 0.708
  • M (in): 0.236
  • Screw Size: M8
  • MH (in): 0.394
  • Wt.: 1.9 oz
  • Approx. Pull: 88 lbs.

Product Details

Neodymium Pot Magnet - 1.417 in X 0.315 in w/Internal Threaded Stem

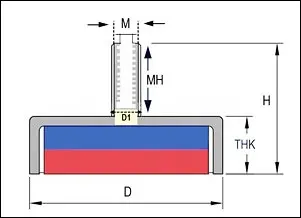

  • This neodymium pot magnet measures 1.417” (36 mm) in diameter (D in) & 0.315" (8 mm) in thickness (THK in) & 0.708" (18 mm) in Height (H in) with an internal threaded stem (M in) of 0.236” (6 mm).
  • Constructed with N35 Neodymium magnets encased in a nickel-plated steel casing.
  • Each magnet weighs 1.86 oz (52 gm) and can lift up to 88 lbs. (40 kg).
  • Strong pull force, ideal for strong mounting applications.
  • Iron thickness is approx. 08” (2mm).
  • Internal Thread - M8 Female Thread accommodates standard fasteners & attachments.
  • Magnets are axially magnetized (through the thickness).

*15.00 total minimum order (excluding shipping & tax if applicable) – Items can be combined to reach the minimum amount.

Part NumberQuantities1102550100+
RBN-36A $9.92$7.93$6.61$5.17$4.25
Quantity:
Price Each: $9.92
Total Price: $9.92
  Back to Items

Neodymium (NdFeB) Magnet Technical Data

Neodymium Magnets Technical Data
Grade: 35
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized
Br: 12,300 Gauss
BHmax: 35 MGOe
Hc: 11,300 Oersteds
Hci: 14,000 Oersteds
Max Operating Temperature: 300ºF/149ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
