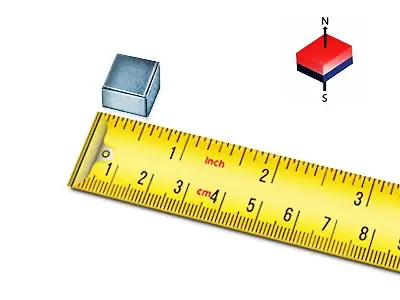

N38 Neodymium Block Magnet 38HNE323214-NI

[38HNE323214-NI]
Click image to enlarge
Specifications
  • Grade: 38H
  • L (in): 0.500
  • W (in): 0.500
  • THK (in): 0.210
  • Shape: Square
  • Finish: Nickel
  • Approx. Pull: 9.5 lbs

N38H Neodymium Block Magnet Product Details

  • This grade 38H neodymium block magnet measures 0.500” in length & width x 0.210" thickness (12.7 mm L & W x 5.3 mm THK) with an approximate pull force of 9.5 lbs (4.3 kg).

  • Grade 38H neodymium magnets have a higher operating temperature than standard NdFeB magnets, capable of operating in temperatures up to 248º Fahrenheit (120º Celsius).

  • Nickel-plated neodymium magnets are made from an alloy of neodymium, iron & boron and are plated with a triple layer of: Ni-Cu-Ni (Nickel-Copper-Nickel) using an electrolytic based process for maximum protection against corrosion & oxidation.
Total Order Minimum
*total minimum order (excluding shipping & tax if applicable) - Items can be combined to reach the minimum amount.
Quantity:
Price Each: $6.57
Total Price: $6.57
  Back to Items

Neodymium (NdFeB) Block Magnet Technical Data

Item: 38HNE323214-NI
Grade: 38H
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.004" on Length (L), Width (W) & Thickness (THK)
Br Range: 12,200 ~ 13,000 Gauss
BHmax Range: 36 ~ 41 MGOe
HC (Min. Value): 11,300 Oersteds
HCi (Min. Value): 17,000 Oersteds
Max Operating Temperature: 248ºF/120ºC
Curie Temp: 644ºF/340ºC
Density (lb/in3): 0.275
