Neodymium Block Magnet - Rubber Coated RBN6412816-M6

[RBN6412816-M6]
Click image to enlarge
Specifications
  • Grade: 42
  • L (in): 2.000
  • W (in): 1.000
  • THK (in): 0.250
  • Finish: Rubber Coated
  • Approx. Pull: 35 lbs.
  • Type: Block w/Counterbore Hole

N42 Rubber Coated Neodymium Block Magnet w/Counterbore Hole

Channel Magnet w/1 Countersunk Hole

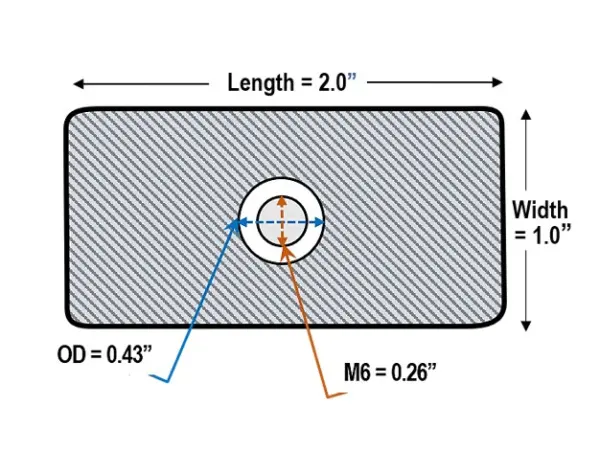

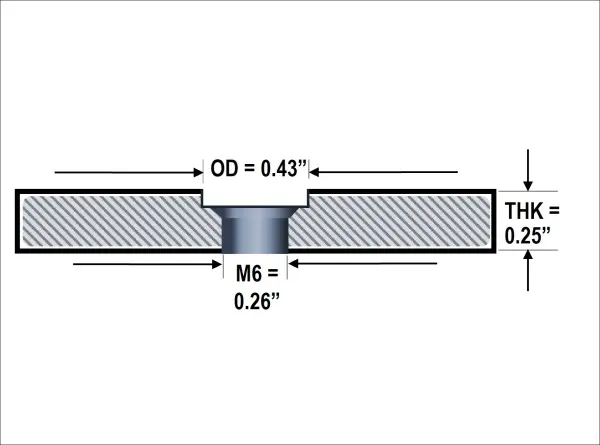

This strong rubber coated mounting magnet measures 2.00” in length x 1.00" width x 0.250" thickness (51 mm L x 25.4 mm W x 6.4 mm THK) with a 0.260" (6.6 mm) center counterbore hole to accommodate M6 screws & fasteners.

Each magnet weighs 0.43 oz (12 gm) and has a pull force of up to 35 lbs. (15.9 kg).

Constructed with N42 Neodymium magnet encased in a steel structure & coated with a protective black Isoprene rubber coating (approximately 0.03" thick.)

Rubber block magnets have an exceptionally strong pull force and do not easily chip. In addition, they are waterproof, durable, high traction, corrosion resistant and temperature resistant.

*Please Note - This magnet is strongly magnetic on only one side. The neodymium magnetic core has a strong magnetic pull force on the counterbored side (the north pole surface) and a weak magnetic force on the other side (the south pole surface).
Quantity:
Price Each: $13.05
Total Price: $13.05
  Back to Items

Rubber Coated N42 Neodymium Block Magnet Technical Data

Item: RBN6412816-M6
Grade: 42
Coating: Black Isoprene Rubber
Magnetization: Stong Magnetic Pull on the North Pole & Weak Magnetic Pull on the South Pole
Standard Dimensional Tolerance: +/-0.004" on Length (L), Width (W) & Thickness (THK)
Br Range: 12,800 ~ 13,500 Gauss
BHmax Range: 40 ~ 44 MGOe
HC (Min. Value): 10,800 Oersteds
HCi (Min. Value): 12,000 Oersteds
Max Operating Temperature: 176ºF/80ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
