N52 Neodymium Block Magnet

[52NE11216064-NI]

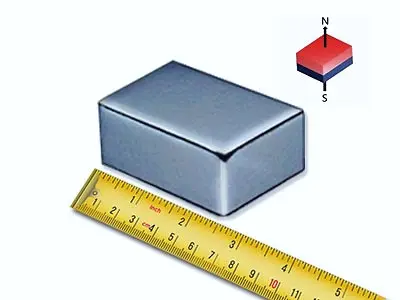

Click image to enlarge
Specifications
  • Grade: 52
  • Length (in): 2.500
  • Width (in): 1.750
  • Thickness (in): 1.000
  • Shape: Rectangle
  • Finish: Nickel
  • Approx. Pull: 380 lbs

N52 Neodymium Block Magnet Product Details

  • This super strong N52 neodymium block magnet measures 2.50” in length x 1.75" width x 1" thickness (63.5 mm L x 44.4 mm W x 25.4 mm THK) with an approximate pull force of 380 lbs (172 kg)!

  • Nickel-plated neodymium magnets are made from an alloy of neodymium, iron & boron and are plated with a triple layer of: Ni-Cu-Ni (Nickel-Copper-Nickel) using an electrolytic based process for maximum protection against corrosion & oxidation.

  • Item 52NE11216064-NI is axially magnetized through the thickness (THK).

  • The standard dimensional tolerance for this magnet is +/-0.0012" on length, +/-0.008" on width, and +/-0.004" on thickness.

*$15.00 minimum order (excluding shipping & tax if applicable) - items can be combined to reach the minimum amount.

Part NumberQuantities15102550100+
52NE11216064-NI $97.24$88.40$85.00$80.54$78.21$69.68
Quantity:
Price Each: $97.24
Total Price: $97.24
  Back to Items

Neodymium (NdFeB) Block Magnet Technical Data

52NE11216064-NI Neodymium Block Magnet Technical Data
Grade: 52
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.012" on Length (L), +/-0.008" on Width (W) , +/-0.004" on & Thickness (THK)
Br: 14,400 Gauss
BHmax: 52 MGOe
Hc: 10,500 Oersteds
Hci: 11,000 Oersteds
Max Operating Temperature: 250ºF/121ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
