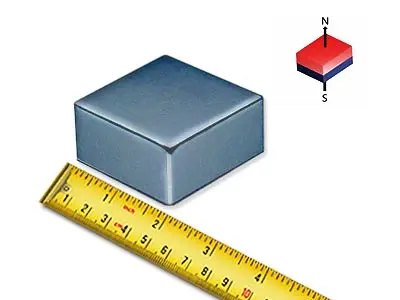

N44 Neodymium Block Magnet

[44NE2812864]
Click image to enlarge
Specifications
  • Grade: 44
  • Length (in): 2.000
  • Width (in): 2.000
  • Thickness (in): 1.000
  • Shape: Square
  • Finish: Uncoated
  • Approx. Pull: 205 lbs

N44 Neodymium Block Magnet Product Details

  • This super strong N44 neodymium square block magnet measures 2.000” L & W x 1.000" THK (51 mm L & W x 25.4mm THK) with an approximate pull force of 205 lbs (93 kg)!

  • Uncoated neodymium magnets are made from an alloy of neodymium, iron & boron and have no coating or plating.

  • Item 44NE2812864 is axially magnetized through the thickness (THK).

  • The standard dimensional tolerance for this magnet is +/-0.008" on length & width, +/-0.004" on thickness.

*$15.00 minimum order (excluding shipping & tax if applicable) - items can be combined to reach the minimum amount.

Part NumberQuantities1102550+
44NE2812864 $115.84$110.32$93.38$79.03
Quantity:
Price Each: $115.84
Total Price: $115.84
  Back to Items

Neodymium (NdFeB) Block Magnet Technical Data

44NE2812864 Neodymium Block Magnet Technical Data
Grade: 44
Coating: None
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.008" on Length (L) & Width (W), +/-0.004" on Thickness (THK)
Br: 13,200 Gauss
BHmax: 44 MGOe
Hc: 11,600 Oersteds
Hci: 12,000 Oersteds
Max Operating Temperature: 275ºF/135ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
