N40 Neodymium Bar Magnet

[40NE406708-NI]

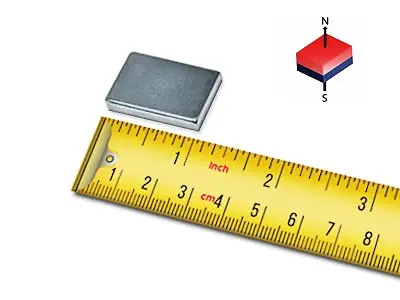

Click image to enlarge
Specifications
  • Grade: 40
  • Length (in): 1.040
  • Width (in): 0.620
  • Thickness (in): 0.130
  • Shape: Rectangle
  • Finish: Nickel
  • Approx. Pull: 10 lbs

N40 Neodymium Bar Magnet Product Details

  • This N40 neodymium bar magnet measures 1.040” in length & 0.620” in width & 0.130” in thickness (26.4 mm L x 15.7 mm W x 3.3 mm THK) with an approximate pull force of 10 lbs (4.5 kg).

  • Nickel-plated neodymium magnets are made from an alloy of neodymium, iron & boron and are plated with a triple layer of: Ni-Cu-Ni (Nickel-Copper-Nickel) using an electrolytic based process for maximum protection against corrosion & oxidation.

  • Item 40NE406708-NI is axially magnetized through the thickness (THK).

  • The standard dimensional tolerance for this magnet is +/-0.008" on length, +/-0.004" on width & thickness.

*$15.00 minimum order (excluding shipping & tax if applicable) - items can be combined to reach the minimum amount.

Part NumberQuantities11025501002505001000+
40NE406708-NI $10.57$8.13$5.67$4.15$3.61$2.83$2.32$1.96
Quantity:
Price Each: $10.57
Total Price: $10.57
  Back to Items

Neodymium (NdFeB) Block Magnet Technical Data

40NE406708-NI Neodymium Block Magnet Technical Data
Grade: 40
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.008" on Length (L), +/-0.004" on Width (W) & Thickness (THK)
Br: 12,900 Gauss
BHmax: 40 MGOe
Hc: 12,400 Oersteds
Hci: 12,000 Oersteds
Max Operating Temperature: 275ºF/135ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
