N35 Neodymium Block Magnets

[35NE2812832-NI]
Click image to enlarge
Specifications
  • Grade: 35
  • Length (in): 2.000
  • Width (in): 2.000
  • Thickness (in): 0.500
  • Shape: Square
  • Finish: Nickel
  • Approx. Pull: 87.5 lbs

Product Details

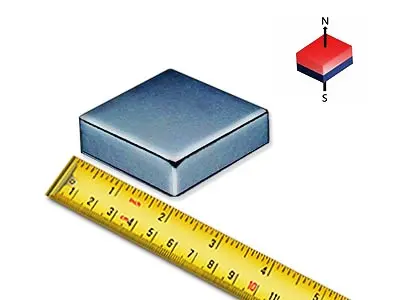

  • This N35 neodymium block magnet measures 2.000” L x 2.000" W x 0.500" THK (51 mm L & 25.4 mm W x 12.7 mm THK) with an approximate pull force of 20 lbs (9 kg).

  • Nickel-plated neodymium magnets are made from an alloy of neodymium, iron & boron and are plated with a triple layer of: Ni-Cu-Ni (Nickel-Copper-Nickel) using an electrolytic based process for maximum protection against corrosion & oxidation.

  • Item 35NE2812832-NI is axially magnetized through the thickness (THK).

  • The standard dimensional tolerance for this magnet is +/-0.008" on length & width, +/-0.004" on thickness.

*$15.00 minimum order (excluding shipping & tax if applicable) - items can be combined to reach the minimum amount.

Part NumberQuantities1102550100250+
35NE2812832-NI $70.72$67.35$50.75$46.69$39.52$33.45
Quantity:
Price Each: $70.72
Total Price: $70.72
  Back to Items

Neodymium (NdFeB) Block Magnet Technical Data

35NE2812832-NI Neodymium Block Magnet Technical Data
Grade: 35
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.008" on Length (L) & Width (W), +/-0.004" on Thickness (THK)
Br: 12,300 Gauss
BHmax: 35 MGOe
Hc: 11,300 Oersteds
Hci: 14,000 Oersteds
Max Operating Temperature: 300ºF/149ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
