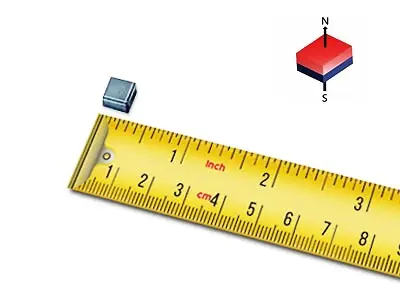

N35 Neodymium Block Magnet 35NE161606-NI

[35NE161606-NI]
Click image to enlarge
Specifications
  • Grade: 35
  • L (in): 0.250
  • W (in): 0.250
  • THK (in): 0.100
  • Shape: Square
  • Finish: Nickel
  • Approx. Pull: 2 lbs

N35 Neodymium Block Magnet Product Details

  • This grade 35 neodymium block magnet measures 0.250” in length & width x 0.100" in thickness (6.4 mm L & W x 2.5 THK) with an approximate pull force of 2 lbs (0.9 kg).

  • Nickel-plated neodymium magnets are made from an alloy of neodymium, iron & boron and are plated with a triple layer of: Ni-Cu-Ni (Nickel-Copper-Nickel) using an electrolytic based process for maximum protection against corrosion & oxidation.
Total Order Minimum
*total minimum order (excluding shipping & tax if applicable) - Items can be combined to reach the minimum amount.
Quantity:
Price Each: $1.68
Total Price: $1.68
  Back to Items

Neodymium (NdFeB) Disc Magnet Technical Data

Item: 35NE161606-NI
Grade: 35
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.004" on Length (L), Width (W) & Thickness (THK)
Br Range: 11,700 ~ 12,500 Gauss
BHmax Range: 33 ~ 38 MGOe
HC (Min. Value): 10,800 Oersteds
HCi (Min. Value): 12,000 Oersteds
Max Operating Temperature: 176ºF/80ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
