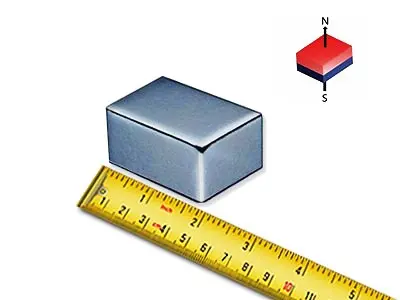

N52 Neodymium Block Magnet

[52NE6412864-NI]
Click image to enlarge
Specifications
  • Grade: 52
  • Length (in): 2.000
  • Width (in): 1.000
  • Thickness (in): 1.000
  • Shape: Rectangle
  • Finish: Nickel
  • Approx. Pull: 145 lbs.

N52 Neodymium Block Magnet Product Details

  • This N52 neodymium block magnet measures 2.000” in length x 1.000" width & thickness (51 mm L x 25.4 mm W & THK) with a pull force of 145 lbs (66 kg).

  • Nickel-plated neodymium magnets are made from an alloy of neodymium, iron & boron and are plated with a triple layer of: Ni-Cu-Ni (Nickel-Copper-Nickel) using an electrolytic based process for maximum protection against corrosion & oxidation.

  • Item 52NE6412864-NI is axially magnetized through the thickness (THK).

  • The standard dimensional tolerance for this magnet is +/-0.008" on length, +/-0.004" on width & thickness.

*$15.00 minimum order (excluding shipping & tax if applicable) - items can be combined to reach the minimum amount.

Part NumberQuantities15102550100+
52NE6412864-NI $58.28$52.98$50.52$45.68$42.02$39.52
Quantity:
Price Each: $58.28
Total Price: $58.28
  Back to Items

Neodymium (NdFeB) Block Magnet Technical Data

52NE6412864-NI Neodymium Block Magnet Technical Data
Grade: 52
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.008" on Length (L), +/-0.004" on Width (W) & Thickness (THK)
Br: 14,400 Gauss
BHmax: 52 MGOe
Hc: 10,500 Oersteds
Hci: 11,000 Oersteds
Max Operating Temperature: 250ºF/121ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
