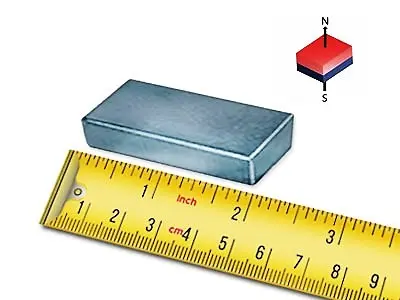

N52 Neodymium Bar Magnet 52NE6412816-NI

[52NE6412816-NI]
Click image to enlarge
Specifications
  • Grade: 52
  • L (in): 2.000
  • W (in): 1.000
  • THK (in): 0.250
  • Shape: Rectangle
  • Finish: Nickel
  • Approx. Pull: 45 lbs

N52 Neodymium Bar Magnet Product Details

  • This strong grade 52 neodymium bar magnet measures 2.00” in length x 1.00" width x 0.250" thickness (51 mm L x 25.4 mm W x 6.4 mm THK) with an approximate pull force of 45 lbs (20 kg).

  • Nickel-plated neodymium magnets are made from an alloy of neodymium, iron & boron and are plated with a triple layer of: Ni-Cu-Ni (Nickel-Copper-Nickel) using an electrolytic based process for maximum protection against corrosion & oxidation.
Total Order Minimum
*total minimum order (excluding shipping & tax if applicable) - Items can be combined to reach the minimum amount.

Quantity:
Price Each: $28.64
Total Price: $28.64
  Back to Items

Neodymium (NdFeB) Bar Magnet Technical Data

Item: 52NE6412816-NI
Grade: 52
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.008" on Length (L), +/-0.004" on Width (W) & Thickness (THK)
Br Range: 14,000 ~ 14,700 Gauss
BHmax Range: 49 ~ 53 MGOe
HC (Min. Value): 10,300 Oersteds
HCi (Min. Value): 11,000 Oersteds
Max Operating Temperature: 176ºF/80ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
