N42 Neodymium Block Magnet

[42NE646416-NI]

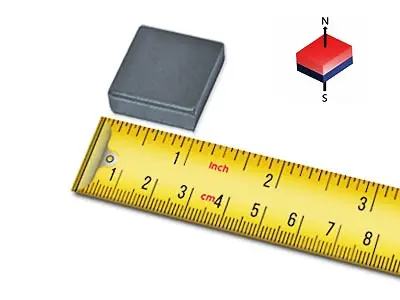

Click image to enlarge
Specifications
  • Grade: 42
  • Shape: Square
  • Length (in): 1.000
  • Width (in): 1.000
  • Thickness (in): 0.250
  • Finish: Nickel
  • Approx. Pull: 24.5 lbs

N42 Neodymium Block Magnet Product Details

  • This strong N42 neodymium block magnet measures 1.000” in length & 1.000” in width & 0.250” in thickness (25.4mm L & W x 6.4mm THK) with an approximate pull force of 24.5 lbs (11 kg).

  • Nickel-plated neodymium magnets are made from an alloy of neodymium, iron & boron and are plated with a triple layer of: Ni-Cu-Ni (Nickel-Copper-Nickel) using an electrolytic based process for maximum protection against corrosion & oxidation.

*$15.00 minimum order (excluding shipping & tax if applicable) - items can be combined to reach the minimum amount.

Part NumberQuantities1102550100250+
42NE646416-NI $19.53$17.75$12.98$9.94$7.96$6.67
Quantity:
Price Each: $19.53
Total Price: $19.53
  Back to Items

Neodymium (NdFeB) Block Magnet Technical Data

42NE646416-NI Neodymium Block Magnet Technical Data
Grade: 42
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.004" on Length (L), Width (W) & Thickness (THK)
Br: 13,050 Gauss
BHmax: 42 MGOe
Hc: 12,500 Oersteds
Hci: 14,000 Oersteds
Max Operating Temperature: 250ºF/121ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
