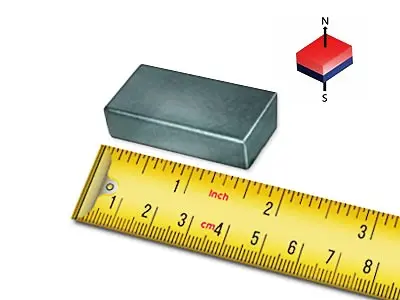

N42 Neodymium Block Magnet

[42NE489616-NI]
Click image to enlarge
Specifications
  • Grade: 42
  • Length (in): 1.500
  • Width (in): 0.750
  • Thickness (in): 0.250
  • Shape: Rectangle
  • Finish: Nickel
  • Approx. Pull: 26 lbs

N42 Neodymium Block Magnet Product Details

  • This strong N42 neodymium block magnet measures 1.500” in length & 0.750” in width & 0.250” in thickness (38 mm L x 19 mm W x 6.4 mm THK) with a an approximate pull force of 26 lbs (11.7 kg).

  • Nickel-plated neodymium magnets are made from an alloy of neodymium, iron & boron and are plated with a triple layer of: Ni-Cu-Ni (Nickel-Copper-Nickel) using an electrolytic based process for maximum protection against corrosion & oxidation.

  • Item 42NE489616-NI is axially magnetized through the thickness (THK).

  • The standard dimensional tolerance for this magnet is +/-0.008" on length, +/-0.004" on width & thickness.

*$15.00 minimum order (excluding shipping & tax if applicable) - items can be combined to reach the minimum amount.

Part NumberQuantities11025501002505001000+
42NE489616-NI $22.07$16.98$12.70$11.18$8.95$7.50$6.35$5.37
Quantity:
Price Each: $22.07
Total Price: $22.07
  Back to Items

Neodymium (NdFeB) Block Magnet Technical Data

42NE489616-NI Neodymium Block Magnet Technical Data
Grade: 42
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.008" on Length (L), +/-0.004" on Width (W) & Thickness (THK)
Br: 13,050 Gauss
BHmax: 42 MGOe
Hc: 12,500 Oersteds
Hci: 14,000 Oersteds
Max Operating Temperature: 250ºF/121ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
