N42 Neodymium Bar Magnet

[42NE406410-NI]

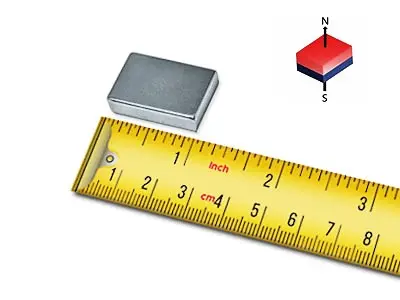

Click image to enlarge
Specifications
  • Grade: 42
  • Length (in): 1.000
  • Width (in): 0.620
  • Thickness (in): 0.156
  • Shape: Rectangle
  • Finish: Nickel
  • Approx. Pull: 12 lbs

N42 Neodymium Bar Magnet Product Details

  • This strong N42 neodymium bar magnet measures 1.00” in length & 0.620” in width & 0.156” in thickness (25.4 mm L x 15.7 mm W x 4 mm THK) with a an approximate pull force of 12 lbs (5.4 kg).

  • Nickel-plated neodymium magnets are made from an alloy of neodymium, iron & boron and are plated with a triple layer of: Ni-Cu-Ni (Nickel-Copper-Nickel) using an electrolytic based process for maximum protection against corrosion & oxidation.

  • Item 42NE406410-NI is axially magnetized through the thickness (THK).

  • The standard dimensional tolerance for this magnet is +/-0.004" on length, width & thickness.

*$15.00 minimum order (excluding shipping & tax if applicable) - items can be combined to reach the minimum amount.

Part NumberQuantities1102550100250+
42NE406410-NI $9.00$8.18$6.87$5.02$3.85$3.08
Quantity:
Price Each: $9
Total Price: $9.00
  Back to Items

Neodymium (NdFeB) Bar Magnet Technical Data

42NE406410-NI Neodymium Block Magnet Technical Data
Grade: 42
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.004" on Length (L), Width (W) & Thickness (THK)
Br: 13,050 Gauss
BHmax: 42 MGOe
Hc: 12,500 Oersteds
Hci: 14,000 Oersteds
Max Operating Temperature: 250ºF/121ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
