N42 Neodymium Block Magnet

[42NE301412-NI]

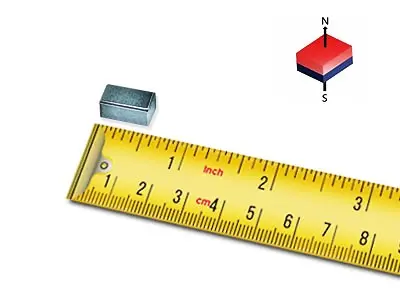

Click image to enlarge
Specifications
  • Grade: 42
  • Length (in): 0.475
  • Width (in): 0.230
  • Thickness (in): 0.195
  • Shape: Rectangle
  • Finish: Nickel
  • Approx. Pull: 6.5 lbs

N42 Neodymium Block Magnet Product Details

  • This N42 neodymium block magnet measures 0.475” in length & 0.230” in width & 0.195”in thickness (12 mm L x 5.8 mm W x 4.9 mm THK) with an approximate pull force of 6.5 lbs (3 kg).

  • Nickel-plated neodymium magnets are made from an alloy of neodymium, iron & boron and are plated with a triple layer of: Ni-Cu-Ni (Nickel-Copper-Nickel) using an electrolytic based process for maximum protection against corrosion & oxidation.

  • Item 42NE301412-NI is axially magnetized through the thickness (THK).

  • The standard dimensional tolerance for this magnet is +/-0.004" on length, width & thickness.

*$15.00 minimum order (excluding shipping & tax if applicable) - items can be combined to reach the minimum amount.

Part NumberQuantities15102550100250+
42NE301412-NI $5.11$4.09$3.27$2.07$1.72$1.45$1.06
Quantity:
Price Each: $5.11
Total Price: $5.11
  Back to Items

Neodymium (NdFeB) Block Magnet Technical Data

42NE301412-NI Neodymium Block Magnet Technical Data
Grade: 42
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.004" on Length (L), Width (W) & Thickness (THK)
Br: 13,050 Gauss
BHmax: 42 MGOe
Hc: 12,500 Oersteds
Hci: 14,000 Oersteds
Max Operating Temperature: 250ºF/121ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
