N42 Neodymium Bar Magnet

[42NE281107-NI]
Click image to enlarge
Specifications
  • Grade: 42
  • Length (in): 2.000
  • Width (in): 0.170
  • Thickness (in): 0.107
  • Shape: Rectangle
  • Finish: Nickel
  • Approx. Pull: 6 lbs.

N42 Neodymium Bar Magnet Product Details

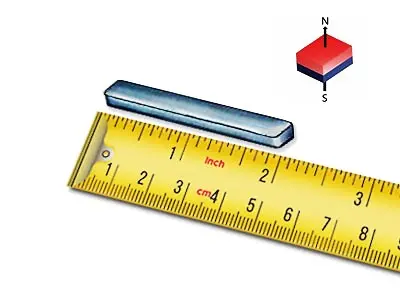

  • This N42 neodymium bar magnet measures 2” L x 0.170 ” W x 0.107” THK (51 mm L x 4.3 mm W x 2.7 mm THK) with an approximate pull force of 6 lbs (2.7 kg).

  • Nickel-plated neodymium magnets are made from an alloy of neodymium, iron & boron and are plated with a triple layer of: Ni-Cu-Ni (Nickel-Copper-Nickel) using an electrolytic based process for maximum protection against corrosion & oxidation.

  • Item 42NE281107-NI is axially magnetized through the thickness (THK).

  • The standard dimensional tolerance for this magnet is +/-0.008" on length, +/-0.004" on width & thickness.

*$15.00 minimum order (excluding shipping & tax if applicable) - items can be combined to reach the minimum amount.

Part NumberQuantities110255010025050010002500500010000+
42NE281107-NI $4.51$4.10$3.36$2.79$2.00$1.49$1.17$0.96$0.81$0.69$0.58
Quantity:
Price Each: $4.51
Total Price: $4.51
  Back to Items

Neodymium (NdFeB) Block Magnet Technical Data

42NE281107-NI Neodymium Block Magnet Technical Data
Grade: 42
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.008" on Length (L), +/-0.004" on Width (W) & Thickness (THK)
Br: 13,050 Gauss
BHmax: 42 MGOe
Hc: 12,500 Oersteds
Hci: 14,000 Oersteds
Max Operating Temperature: 250ºF/121ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
