N35 Neodymium Bar Magnet

[35NE602814]

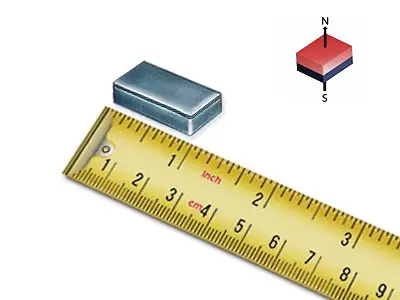

Click image to enlarge
Specifications
  • Grade: 35
  • Length (in): 0.945
  • Width (in): 0.435
  • Thickness (in): 0.215
  • Shape: Rectangle
  • Finish: Uncoated
  • Approx. Pull: 13.5 lbs

N35 Neodymium Bar Magnet Product Details

  • This strong N35 neodymium bar magnet measures 0.945” L x 0.435" W x 0.215" THK (24 mm L & 11 mm W x 5.5 mm THK) with an approximate pull force of 12 lbs (5.4 kg).

  • Uncoated neodymium magnets are made from an alloy of neodymium, iron & boron and have no coating or plating.

  • Item 35NE602814 is axially magnetized through the thickness (THK).

  • The standard dimensional tolerance for this magnet is +/-0.004" on length, width & thickness.

*$15.00 minimum order (excluding shipping & tax if applicable) - items can be combined to reach the minimum amount.

Part NumberQuantities110255010025050010002500500010000+
35NE602814 $8.99$8.17$5.70$4.16$3.62$2.56$2.33$1.97$1.67$1.41$1.24
Quantity:
Price Each: $8.99
Total Price: $8.99
  Back to Items

Neodymium (NdFeB) Block Magnet Technical Data

35NE602814 Neodymium Bar Magnet Technical Data
Grade: 35
Coating: None
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.004" on Length (L), Width (W) & Thickness (THK)
Br: 12,300 Gauss
BHmax: 35 MGOe
Hc: 11,300 Oersteds
Hci: 14,000 Oersteds
Max Operating Temperature: 300ºF/149ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
