N35 Neodymium Block Magnet

[35NE501212]

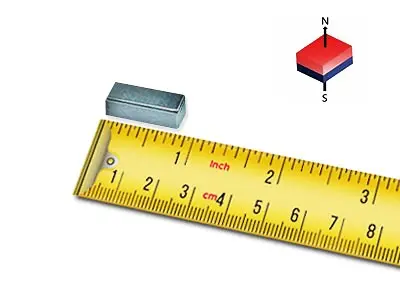

Click image to enlarge
Specifications
  • Grade: 35
  • Length (in): 0.790
  • Width (in): 0.195
  • Thickness (in): 0.195
  • Shape: Rectangle
  • Finish: Uncoated
  • Approx. Pull: 6.5 lbs

N35 Neodymium Block Magnet Product Details

  • This N35 neodymium block magnet measures 0.790” in length & 0.195 ” in width & thickness (20 mm L x 5mm W x 4.9 mm THK) with a an approximate pull force of 6.5 lbs (2.9 kg).

  • Uncoated neodymium magnets are made from an alloy of neodymium, iron & boron and have no coating or plating.

  • Item 35NE501212 is axially magnetized through the thickness (THK).

  • The standard dimensional tolerance for this magnet is +/-0.004" on length, width & thickness.

*$15.00 minimum order (excluding shipping & tax if applicable) - items can be combined to reach the minimum amount.

Part NumberQuantities110255010025050010002500500010000+
35NE501212 $3.90$3.39$2.78$2.31$1.65$1.24$0.97$0.87$0.67$0.62$0.53
Quantity:
Price Each: $3.9
Total Price: $3.90
  Back to Items

Neodymium (NdFeB) Block Magnet Technical Data

35NE501212 Neodymium Block Magnet Technical Data
Grade: 35
Coating: None
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.004" on Length (L), Width (W) & Thickness (THK)
Br: 12,300 Gauss
BHmax: 35 MGOe
Hc: 11,300 Oersteds
Hci: 14,000 Oersteds
Max Operating Temperature: 300ºF/149ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
