N35 Neodymium Block Magnet 35NE301412

[35NE301412]
Click image to enlarge
Specifications
  • Grade: 35
  • L (in): 0.475
  • W (in): 0.230
  • THK (in): 0.195
  • Shape: Rectangle
  • Finish: Uncoated
  • Approx. Pull: 5.5 lbs

N35 Neodymium Block Magnet Product Details

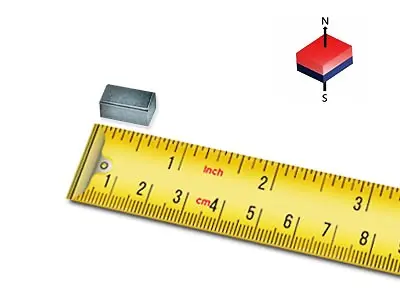

  • This small N35 neodymium block magnet measures 0.475” L x 0.230" W x 0.195" THK (12 mm L & 5.8 mm W x 4.9 mm THK) with an approximate pull force of 5.5 lbs (2.5 kg).

  • Uncoated neodymium magnets are made from an alloy of neodymium, iron & boron and have no coating or plating.
Total Order Minimum
*total minimum order (excluding shipping & tax if applicable) - Items can be combined to reach the minimum amount.
Quantity:
Price Each: $4.08
Total Price: $4.08
  Back to Items

Neodymium (NdFeB) Block Magnet Technical Data

Item: 35NE301412
Grade: 35
Coating: None
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.004" on Length (L), Width (W) & Thickness (THK)
Br Range: 11,700 ~ 12,500 Gauss
BHmax Range: 33 ~ 38 MGOe
HC (Min. Value): 10,800 Oersteds
HCi (Min. Value): 12,000 Oersteds
Max Operating Temperature: 176ºF/80ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
