N35 Neodymium Bar Magnet 35NE281107

[35NE281107]
Click image to enlarge
Specifications
  • Grade: 35
  • L (in): 2.000
  • W (in): 0.170
  • THK (in): 0.107
  • Shape: Rectangle
  • Finish: Uncoated
  • Approx. Pull: 5.5 lbs

N35 Neodymium Bar Magnet Product Details

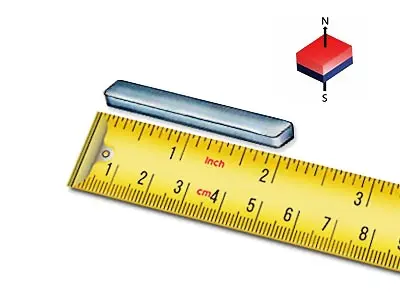

  • This grade 35 neodymium bar magnet measures 2” L x 0.170 ” W x 0.170” x 0.107 THK (51 mm L x 4.3 mm W x 2.7 mm THK) with an approximate pull force of 5.5 lbs (2.5 kg).

  • Uncoated neodymium magnets are made from an alloy of neodymium, iron & boron and have no coating or plating.
Total Order Minimum
*total minimum order (excluding shipping & tax if applicable) - Items can be combined to reach the minimum amount.
Quantity:
Price Each: $4.96
Total Price: $4.96
  Back to Items

Neodymium (NdFeB) Bar Magnet Technical Data

Item: 35NE281107
Grade: 35
Coating: None
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.008" on Length (L), +/-0.004" on Width (W) & Thickness (THK)
Br Range: 11,700 ~ 12,500 Gauss
BHmax Range: 33 ~ 38 MGOe
HC (Min. Value): 10,800 Oersteds
HCi (Min. Value): 12,000 Oersteds
Max Operating Temperature: 176ºF/80ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
