N35 Neodymium Block Magnet

[35NE209620-NI]

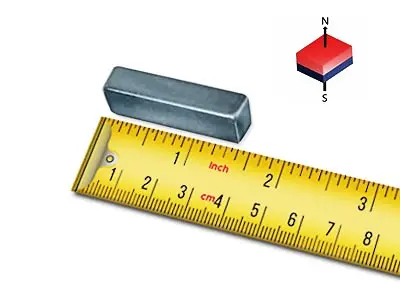

Click image to enlarge
Specifications
  • Grade: 35
  • Length (in): 1.500
  • Width (in): 0.305
  • Thickness (in): 0.305
  • Shape: Rectangle
  • Finish: Nickel
  • Approx. Pull: 18 lbs

Product Details

  • This N35 neodymium block magnet measures 1.50” in length x 0.305" in width & thickness (38 mm L x 7.7 mm W & THK) with an approximate pull force of 18 lbs (8 kg).

  • Nickel-plated neodymium magnets are made from an alloy of neodymium, iron & boron and are plated with a triple layer of: Ni-Cu-Ni (Nickel-Copper-Nickel) using an electrolytic based process for maximum protection against corrosion & oxidation.

  • Item 35NE209620-NI is axially magnetized through the thickness (THK).

  • The standard dimensional tolerance for this magnet is +/-0.008" on length, +/-0.004" on width & thickness.

*$15.00 minimum order (excluding shipping & tax if applicable) - items can be combined to reach the minimum amount.

Part NumberQuantities1102550100250500+
35NE209620-NI $12.36$11.24$8.02$6.00$5.28$3.85$3.55
Quantity:
Price Each: $12.36
Total Price: $12.36
  Back to Items

Neodymium (NdFeB) Block Magnet Technical Data

35NE209620-NI Neodymium Block Magnet Technical Data
Grade: 35
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.008" on Length (L), +/-0.004" on Width (W) & Thickness (THK)
Br: 12,300 Gauss
BHmax: 35 MGOe
Hc: 11,300 Oersteds
Hci: 14,000 Oersteds
Max Operating Temperature: 300ºF/149ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
