N35 Neodymium Block Magnet 35NE1878720

[35NE1878720]

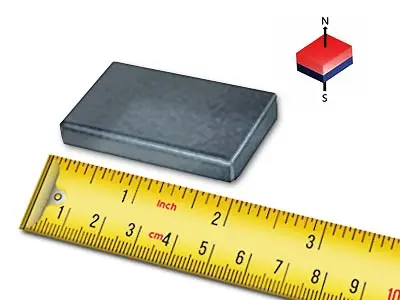

Click image to enlarge
Specifications
  • Grade: 35
  • Length (in): 1.875
  • Width (in): 0.870
  • Thickness (in): 0.200
  • Shape: Bar
  • Finish: Uncoated
  • Approx. Pull: 22 lbs

N35 Neodymium Block Magnet Product Details

  • This grade 35 neodymium block magnet measures 1.875” L x 0.870" W x 0.200" THK (47.6 mm L & 22 mm W x 5 mm THK) with an approximate pull force of 22 lbs (10 kg).

  • Uncoated neodymium magnets are made from an alloy of neodymium, iron & boron and have no coating or plating.

*$15.00 minimum order (excluding shipping & tax if applicable) - items can be combined to reach the minimum amount.

Quantity:
Price Each: $18.75
Total Price: $18.75
  Back to Items

Neodymium (NdFeB) Block Magnet Technical Data

Item: 35NE1878720
Grade: 35
Coating: None
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.008" on Length (L), +/-0.004" on Width (W) & Thickness (THK)
Br Range: 11,700 ~ 12,500 Gauss
BHmax Range: 33 ~ 38 MGOe
HC (Min. Value): 10,800 Oersteds
HCi (Min. Value): 12,000 Oersteds
Max Operating Temperature: 300ºF/149ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
