N35 Neodymium Bar Magnet

[35NE1878720-NI]

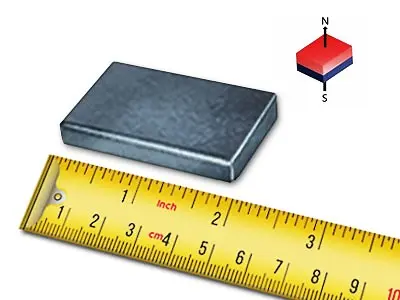

Click image to enlarge
Specifications
  • Grade: 35
  • Length (in): 1.875
  • Width (in): 0.870
  • Thickness (in): 0.200
  • Shape: Rectangle
  • Finish: Nickel
  • Approx. Pull: 22 lbs

N35 Neodymium Block Magnet Product Details

  • This N35 neodymium block/bar magnet measures 1.875” L x 0.870" W x 0.200" THK (47.6 mm L & 22 mm W x 5 mm THK) with an approximate pull force of 22 lbs (10 kg).

  • Nickel-plated neodymium magnets are made from an alloy of neodymium, iron & boron and are plated with a triple layer of: Ni-Cu-Ni (Nickel-Copper-Nickel) using an electrolytic based process for maximum protection against corrosion & oxidation.

  • Item 35NE1878720-NI is axially magnetized through the thickness (THK).

  • The standard dimensional tolerance for this magnet is +/-0.008" on length, +/-0.004" on width & thickness.

*$15.00 minimum order (excluding shipping & tax if applicable) - items can be combined to reach the minimum amount.

Part NumberQuantities1102550100250+
35NE1878720-NI $19.69$18.75$14.03$10.99$9.00$7.62
Quantity:
Price Each: $19.69
Total Price: $19.69
  Back to Items

Neodymium (NdFeB) Block Magnet Technical Data

35NE1878720-NI Neodymium Block Magnet Technical Data
Grade: 35
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.008" on Length (L), +/-0.004" on Width (W) & Thickness (THK)
Br: 12,300 Gauss
BHmax: 35 MGOe
Hc: 11,300 Oersteds
Hci: 14,000 Oersteds
Max Operating Temperature: 300ºF/149ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
