N35 Neodymium Block Magnets

[35NE1011306-NI]
Click image to enlarge
Specifications
  • Grade: 35
  • Length (in): 1.590
  • Width (in): 0.200
  • Thickness (in): 0.095
  • Shape: Rectangular
  • Finish: Nickel
  • Approx. Pull: 4.5 lbs

N35 Neodymium Block Magnet Product Details

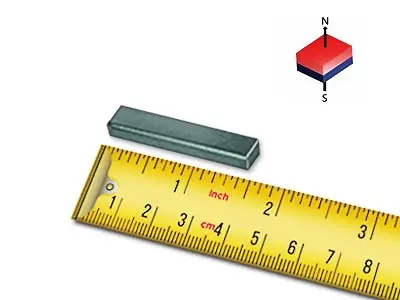

  • This N35 neodymium block magnet measures 1.590” L x 0.200" W x 0.095" THK (40 mm L & 5 mm W x 2.4 mm THK) with an approximate pull force of 4.5 lbs (2 kg).

  • Nickel-plated neodymium magnets are made from an alloy of neodymium, iron & boron and are plated with a triple layer of: Ni-Cu-Ni (Nickel-Copper-Nickel) using an electrolytic based process for maximum protection against corrosion & oxidation.

  • Item 35NE1011306-NI is axially magnetized through the thickness (THK).

  • The standard dimensional tolerance for this magnet is +/-0.008" on length, +/-0.004" on width & thickness.

*$15.00 minimum order (excluding shipping & tax if applicable) - items can be combined to reach the minimum amount.

Part NumberQuantities15102550100+
35NE1011306-NI $4.86$4.42$3.58$2.93$2.44$1.74
Quantity:
Price Each: $4.86
Total Price: $4.86
  Back to Items

Neodymium (NdFeB) Block Magnet Technical Data

35NE1011306-NI Neodymium Block Magnet Technical Data
Grade: 35
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.008" on Length (L), +/-0.004" on Width (W) & Thickness (THK)
Br: 12,300 Gauss
BHmax: 35 MGOe
Hc: 11,300 Oersteds
Hci: 14,000 Oersteds
Max Operating Temperature: 300ºF/149ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
