N35 Neodymium Cup Magnet w/Square Hole - RBN-22

[RBN-22]
Click image to enlarge
Specifications
  • Grade: 35
  • THK (in): 0.175
  • D2: 0.315
  • Screw Size: M4
  • Wt. (ozs): 0.8
  • Approx. Pull: 16 lbs
  • DIA (in): 0.77
  • D1: 0.20

Neodymium Cup Magnet w/Square Hole RBN-22 Product Details

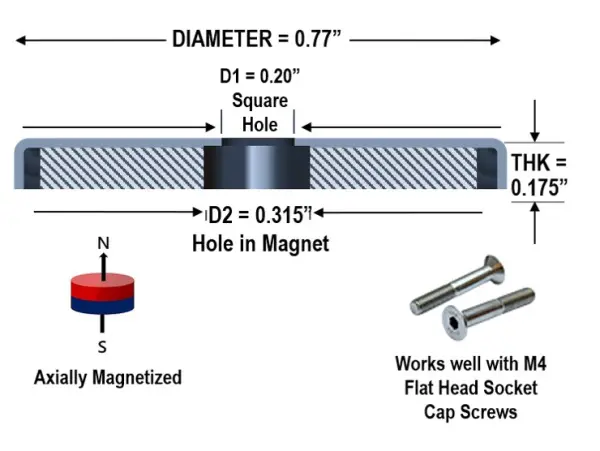

  • This specialty magnet measures 0.77" in diameter & 0.175" in thickness or (19.6 mm DIA x 4.4 mm THK) with a 0.20" (5mm) SQUARE mounting hole (D1) & the magnet has a 0.315" (8 mm) hole (D2).

  • Constructed with N35 Neodymium magnets plated with a triple-layer of Nickel-Copper-Nickel (Ni-Cu-Ni) and encased in a zinc-plated steel cup.

  • Each magnet weighs 0.8 oz (23 gm) and can lift up to 16 lbs. (7.25 kg).

  • Ideal for holding & mounting applications.

  • * M4 flat head socket cap screws work well with this item.
Total Order Minimum
*total minimum order (excluding shipping & tax if applicable) - Items can be combined to reach the minimum amount.

Quantity:
Price Each: $4.59
Total Price: $4.59
  Back to Items

Neodymium (NdFeB) Magnet Technical Data

Item: RBN-22
Grade: 35
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized Through the Thickness (THK)
Br Range: 11,700 ~ 12,500 Gauss
BHmax Range: 33 ~ 38 MGOe
HC (Min. Value): 10,800 Oersteds
HCi (Min. Value): 12,000 Oersteds
Max Operating Temperature: 176ºF/80ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
