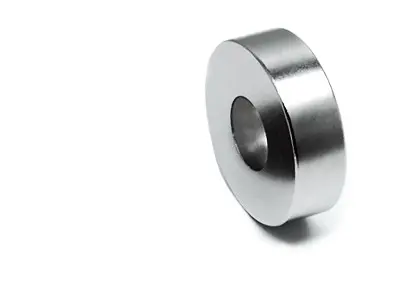

N42 Neodymium Ring Magnet 42NEG321616-NI

[42NEG321616-NI]
Click image to enlarge
Specifications
  • Grade: 42
  • OD (in): 0.500
  • ID (in): 0.250
  • THK (in): 0.250
  • Finish: Nickel
  • Type: Straight Hole
  • Approx. Pull: 8.75 lbs.

N42 Neodymium Ring Magnet Product Details

  • This grade 42 neodymium ring magnet measures 0.500” in outside diameter x 0.250" in inside diameter x 0.250” in thickness or (12.7 mm OD x 6.4 mm ID x 6.4 mm THK) with an approximate pull force of 8.75 lbs.(4kg).

  • Nickel-plated neodymium magnets are made from an alloy of neodymium, iron & boron and are plated with a triple layer of: Ni-Cu-Ni (Nickel-Copper-Nickel) using an electrolytic based process for maximum protection against corrosion & oxidation.
Total Order Minimum
*total minimum order (excluding shipping & tax if applicable) - Items can be combined to reach the minimum amount.

Quantity:
Price Each: $6.78
Total Price: $6.78
  Back to Items

Neodymium (NdFeB) Ring Magnet Technical Data

Item: 42NEG321616-NI
Grade: 42
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.004" on Outer Diameter (OD), Inner Diameter (ID) & Thickness (THK)
Br Range: 12,800 ~ 13,500 Gauss
BHmax Range: 40 ~ 44 MGOe
HC (Min. Value): 10,800 Oersteds
HCi (Min. Value): 12,000 Oersteds
Max Operating Temperature: 176ºF/80ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
