N52 Neodymium Block Magnet 52NE72012-NI

[52NE072012-NI]
Click image to enlarge
Specifications
  • Grade: 52
  • L (in): 0.315
  • W (in): 0.118
  • THK (in): 0.197
  • Shape: Rectangle
  • Finish: Nickel
  • Approx. Pull: 3 lbs.

N52 Neodymium Block Magnet Product Details

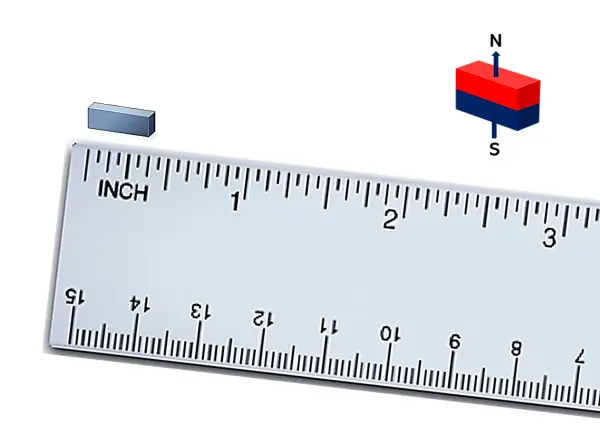

  • This micro-sized N52 neodymium block magnet measures 0.315” L x 0.118" W x 0.197" THK (8 mm L & 3 mm W x 5 mm THK) with an approximate pull force of 3 lbs. (1.4 kg).

  • Nickel-plated neodymium magnets are made from an alloy of neodymium, iron & boron and are plated with a triple
    layer of: Ni-Cu-Ni (Nickel-Copper-Nickel) using an electrolytic based process for maximum protection against corrosion & oxidation.
Total Order Minimum
*total minimum order (excluding shipping & tax if applicable) - Items can be combined to reach the minimum amount.
Quantity:
Price Each: $1.82
Total Price: $1.82
  Back to Items

Neodymium (NdFeB) Cube Magnet Technical Data

Item: 52NE072012-NI
Grade: 52
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)

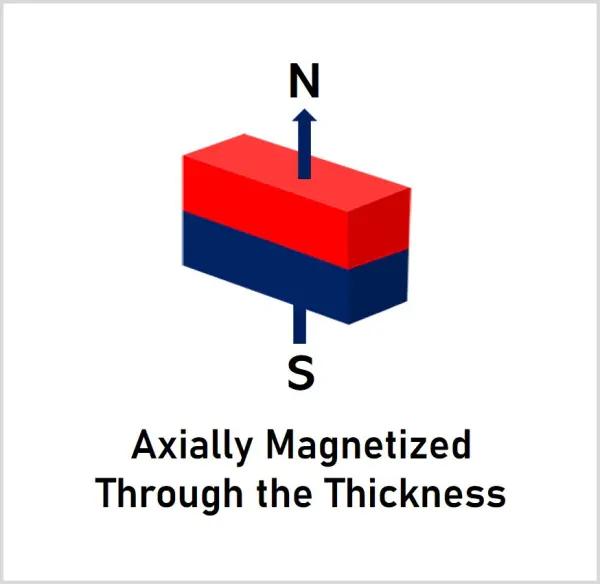

Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.004" on Length (L), Width (W) & Thickness (THK)
Br Range: 14,000 ~ 14,700 Gauss
BHmax Range: 49 ~ 53 MGOe
HC (Min. Value): 10,300 Oersteds
HCi (Min. Value): 11,000 Oersteds
Max Operating Temperature: 176ºF/80ºC
Curie Temp: 590ºF/310ºC
Density (lb/in3): 0.275
