Neodymium Name Badge Magnet BH-112

[BH-112]
Click image to enlarge
Specifications
  • Grade: 35
  • Length (in): 1.772
  • Width (in): 0.512
  • THK (in): 0.157
  • Wt.: 0.53 oz
  • Approx. Pull: 7 lbs.

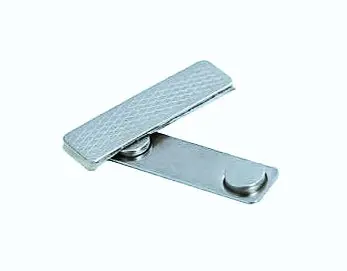

Neodymium Name Badge Magnet w/Adhesive Foam Strip

  • Neodymium badge magnets measure 1.77” long, ;0.51” wide & is 0.157” thick including the 2 magnets (1.77” L" x 0.51” W x 0.157” THK or 45mm L. x 13mm W x 6mm THK).

  • Easy to use & does not mar or tear clothing.

  • 2-piece design – Nickel plated steel strip with self-adhesive foam strip for attaching name tags & business cards plus a magnetic plate, constructed with two powerful Neodymium magnets. The magnetic plate is placed underneath a shirt, blouse or jacket, while the steel strip with the name tag is placed on the outside - and held in place by the magnet.

  • Each magnet weighs 0.4 oz (11.4 gm) and can hold up to 7 lbs. (3.2 kg).
Total Order Minimum
*total minimum order (excluding shipping & tax if applicable) - Items can be combined to reach the minimum amount.
Quantity:
Price Each: $2.13
Total Price: $2.13
  Back to Items

Neodymium (NdFeB) Name Badge Magnet Technical Data

Item: BH-112
Grade: 35
Coating: Ni-Cu-Ni (Nickel-Copper-Nickel)
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.004" on both Diameter (DIA) & Thickness (THK)
Br Range: 11,700 ~ 12,500 Gauss
BHmax Range: 33 ~ 38 MGOe
Density (lb/in3): 0.275
