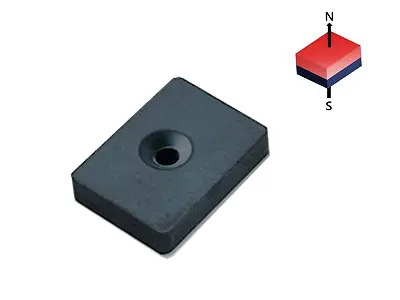

Ceramic Block Magnet w/Countersunk Hole

[55B756216]
Click image to enlarge
Specifications
  • Grade: 5
  • L (in): 0.750
  • W (in): 0.630
  • THK (in): 0.165
  • Shape: Rectangle - Countersunk
  • Approx. Pull: 11 ozs.

Ceramic Block Magnet w/Countersunk Hole Product Details

  • This grade 5 ceramic block magnet measures 0.750” L x 0.630" W x 0.165" THK (19 mm L x 16 mm W x 4 mm THK) with a 0.130" (+/-.015") H countersunk hole & approximate pull force of 11 oz (0.3 kg).

  • Composed of iron oxide & barium or strontium carbonate, ceramic block magnets exhibit relatively good holding strength.

  • Item 55B756216 is axially magnetized through the thickness (THK).

  • The standard dimensional tolerance for this magnet is +/-0.005" on length, width & thickness.
Total Order Minimum
*total minimum order (excluding shipping & tax if applicable) - Items can be combined to reach the minimum amount.

Quantity:
Price Each: $0.4
Total Price: $0.40
  Back to Items

Ceramic Block Magnet Technical Data

55B756216 Countersunk Ceramic Block Magnet Technical Data
Grade: 5
Magnetization: Axially Magnetized Through the Thickness (THK)
Standard Dimensional Tolerance: +/-0.005" on Length (L), Width (W) & Thickness (THK)
Br: 3,950 Gauss
BHmax: 3.6 MGOe
Hc: 2,400 Oersteds
Hci: 2,450 Oersteds
Max Operating Temperature: 592ºF/300ºC
Curie Temp: 842ºF/450ºC
Density (lb/in3): 0.178
