Sintered Alnico 8 Disc Magnet

[S8D1629]

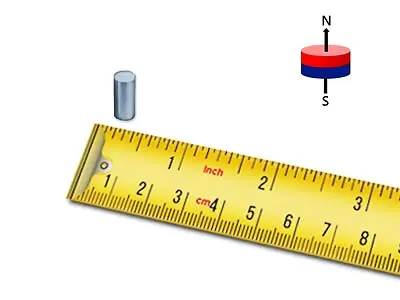

Click image to enlarge
Specifications
  • Grade: 8
  • Diameter (in): 0.250
  • Thickness (in): 0.450
  • Type: Sintered

Sintered Gr.8 Alnico Disc Magnet Product Details

  • This Sintered Gr. 8 Alnico Disc Magnet measures 0.250" in diameter x 0.450" in thickness (6.4mm D x 11.4mm THK).

  • Item S8D3213 is magnetized through the Thickness (THK).

  • Generally the tolerances on Alnico Disc Magnets are +/-0.005" on diameter and +/-0.15" on length.

* $15.00 total minimum order (excluding shipping & tax if applicable) - Items can be combined to reach the minimum amount.

Part NumberQuantities1102550100250+
S8D1629 $2.08$1.60$1.07$0.89$0.75$0.55
Quantity:
Price Each: $2.08
Total Price: $2.08
  Back to Items

Alnico Magnet Technical Data

Alnico Disc Magnets Technical Data
Grade: 8
Type: Sintered
Magnetization: Through the Thickness (THK)
Br: 7,000 Gauss
BHmax: 5 MGOe
Hc: 1,900 Oersteds
Max Operating Temperature: 1004ºF/540ºC
Curie Temp: 1580ºF/860ºC
Density (lb/in3): 0.252
