Cast Alnico 8 Rod Magnet

[8RR6-500]

Click image to enlarge

Specifications

Cast Grade 8 Alnico Rod Magnet Product Details

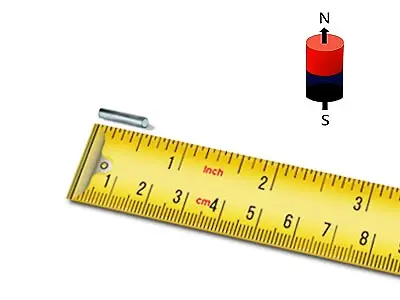

This Cast Grade 8 Alnico Rod Magnet measures 0.093" in diameter x 0.500" in length (2.4 mm D x 12.7 mm L).

The standard dimensional tolerance for this magnet is +/-0.005" on both diameter & length.

* $15.00 total minimum order (excluding shipping & tax if applicable) - Items can be combined to reach the minimum amount.

Part Number	Quantities	1	5	10	25	50	100	250+
8RR6-500		$3.85	$3.21	$2.85	$2.51	$2.01	$1.63	$1.34

Quantity:

Price Each: $3.85

Total Price: $3.85

Back to Items

8RR6-500 Alnico Rod Magnet Technical Data
Grade: 8
Type: Cast
Standard Dimensional Tolerances: +/-0.005" on both Diameter (D) & Length (L)
Magnetization: Axially Magnetized Through the Length (L)
Br: 8,300 Gauss
BHmax: 5.5 MGOe
Hc: 1,650 Oersteds
Max Operating Temperature: 1004ºF/540ºC
Curie Temp: 1580ºF/860ºC
Density (lb/in3): 0.265
