Cast Alnico 8 Disc Magnet

[C8D3232]

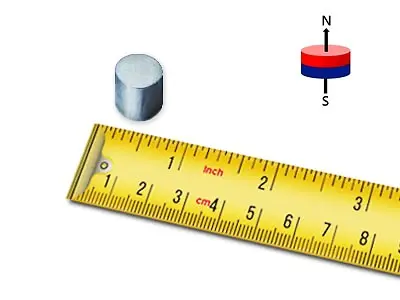

Click image to enlarge
Specifications
  • Grade: 8
  • Diameter (in): 0.500
  • Thickness (in): 0.500
  • Type: Cast

Cast Grade 8 Alnico Disc Magnet Product Details

  • This Cast Grade 8 Alnico Disc Magnet measures 0.500" in diameter x 0.500" in thickness (12.7 mm D x 12.7 mm THK).

  • Item C8D3232 is axially magnetized through the thickness (THK).

  • The standard dimensional tolerance for this magnet is +/-0.005" on both diameter & thickness.

* $15.00 total minimum order (excluding shipping & tax if applicable) - Items can be combined to reach the minimum amount.

Quantity:
Price Each: $7.14
Total Price: $7.14
  Back to Items

Alnico Disc Magnet Technical Data

C8D3232 Alnico Disc Magnet Technical Data
Grade: 8
Type: Cast
Standard Dimensional Tolerance: +/-0.005" on both Diameter (D) & Thickness (THK)
Magnetization: Axially Magnetized Through the Thickness (THK)
Br: 8,300 Gauss
BHmax: 5.5 MGOe
Hc: 1,650 Oersteds
Max Operating Temperature: 1004ºF/540ºC
Curie Temp: 1580ºF/860ºC
Density (lb/in3): 0.265
