Cast Alnico 5 Bar Magnet RB1632

[RB1632]

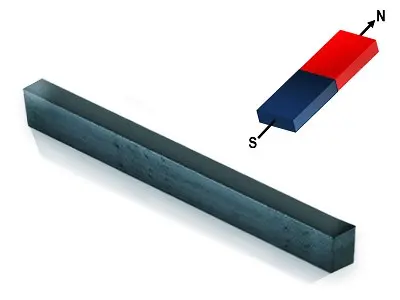

Click image to enlarge
Specifications
  • Grade: 5
  • Width (in): 0.250
  • Thickness (in): 0.500
  • Length (in): 6.000
  • Shape: Bar

Cast Grade 5 Alnico Bar Magnet Product Details

  • This Cast Grade 5 Alnico Bar Magnet measures 0.250" (6.4 mm) in width (W) x 0.500" (12.7 mm) in thickness (THK) x 6.000" (15.2 cm) in length (L).

  • Item RB1632 is axially magnetized through the length (L).

  • The standard dimensional tolerance for this magnet is +/-0.005" on both width & thickness & +/-0.015" on length.
Total Order Minimum
*total minimum order (excluding shipping & tax if applicable) - Items can be combined to reach the minimum amount.

Quantity:
Price Each: $33.06
Total Price: $33.06
  Back to Items

Alnico Bar Magnet Technical Data

RB1632 Alnico Rod Magnet Technical Data
Grade: 5
Type: Cast
Standard Dimensional Tolerance: +/-0.005" on both Width (W) & Thickness (THK) and +/-0.015" on Length (L)
Magnetization: Axially Magnetized Through the Length (L)
Br: 12,500 Gauss
BHmax: 5.5 MGOe
Hc: 640 Oersteds
Max Operating Temperature: 1004ºF/540ºC
Curie Temp: 1580ºF/860ºC
Density (lb/in3): 0.265
