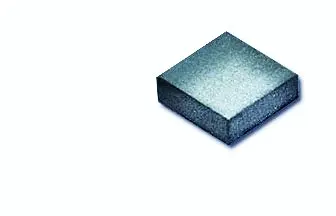

SmCo Block Magnet 26RE242416
Length (in): 0.375
Width (in): 0.375
Thickness (in): 0.250
Approx. Pull: 6 lbs.
Grade 26 Samarium Cobalt Block Magnet Product Details
- This Grade 26 Samarium Cobalt Block Magnet measures 3/8" L x 3/8" W by 1/4" in thickness (0.375" L x 0.375” W x 0.250" THK) or (9.53 mm L x 9.53 mm W x 6.35mm THK) with an approximate pull force of 6 lbs. (2.7 kg).
- Sintered Samarium Cobalt magnets made with Sm2Co17 Grade 26 material, are built to perform well in high or very low temperature environments and do not typically require any surface treatments.
- Item 26RE242416 is axially magnetized through the thickness (THK).
- The standard dimensional tolerance for this magnet is +/-0.004" on length, width & thickness.
- Commonly used for all types of industrial, aerospace, military & defense, and medical applications.
*15.00 minimum order (excluding shipping & tax if applicable) - items can be combined to reach the minimum amount.
Please note that special safety precautions should be taken when handling & packaging this material.
Price Each: $7.83
Total Price: $7.83
Samarium Cobalt Block Magnet Technical Data
|26RE242416 SmCo Block Magnet Technical Data
|Standard Dimensional Tolerance: +/-0.004" on Length (L), Width (W) & Thickness (THK)
|Magnetization: Axially Magnetized Through the Thickness (THK)
|Br: 10,500 Gauss
|BHmax: 26 MGOe
|Hc: 9,200 Oersteds
|Hci: 10,000 Oersteds
|Max Operating Temperature: 662ºF/350ºC
|Curie Temp: 825ºF/441ºC
|Density (lb/in3): 0.300
Safety Precautions for Samarium Cobalt Magnets
SmCo magnets are hard, very brittle and high in magnetic strength. They can also snap together with great force, and chip or break if dropped. Therefore, they require careful handling and packing in order to prevent injuries or damages to the magnets. (top)
